deskontroller LITE V3
Art-Net Pixel Controller for LED pixels and digital LED strips
Free Shipping - 24h
Made in Europe
5 year warranty
30 days money back guarantee

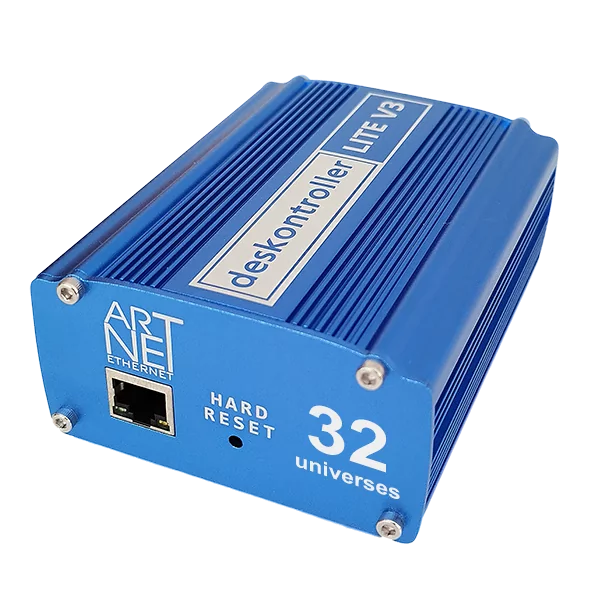

deskontroller LITE V3 32 universes.
Art-Net DMX Pixel Controller
- 32 Art-Net DMX universes
- 16384 channels
- 5440 RGB Pixels
- 32 ports of 1 universe each
Price: 490,00 €
deskontroller LITE V3 64 universes.
Art-Net DMX Pixel Controller
- 64 Art-Net DMX universes
- 32768 channels
- 10880 RGB Pixels
- 32 ports of 2 universes each
Price: 770,00 € - Now 739,00 €
deskontroller LITE V3 96 universes.
Art-Net DMX Pixel Controller
- 96 Art-Net DMX universes
- 49152 channels
- 16320 RGB Pixels
- 32 ports of 3 universes each
Price: 940,00 €

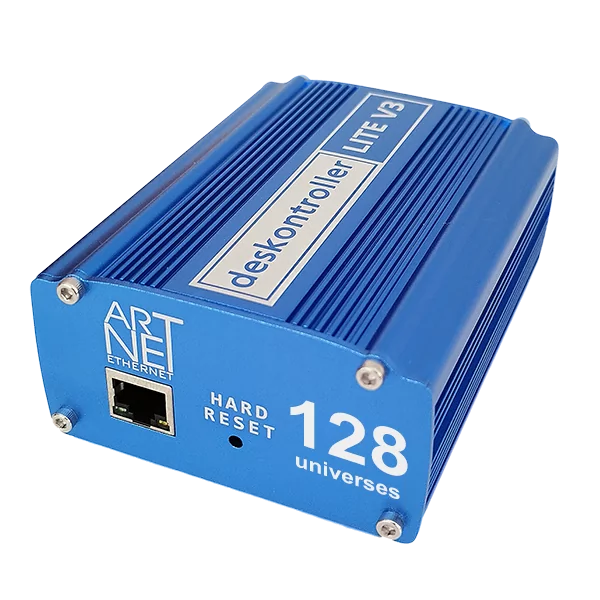

deskontroller LITE V3 128 universes.
Art-Net DMX Pixel Controller
- 128 Art-Net DMX universes
- 65536 channels
- 21760 RGB Pixels
- 32 ports of 4 universes each
Price: 1.050,00 €
deskontroller LITE V3 160 universes.
Art-Net DMX Pixel Controller
- 160 Art-Net DMX universes
- 81920 channels
- 27200 RGB Pixels
- 32 ports of 5 universes each
Price: 1.150,00 € - Now 1.100,00 €
deskontroller LITE V3 192 universes.
Art-Net DMX Pixel Controller
- 192 Art-Net DMX universes
- 98304 channels
- 32640 RGB Pixels
- 32 ports of 6 universes each
Price: 1.240,00 € - Now 1.140,00 €
Quick comparison — deskontroller lite v3
Art-Net LED Pixel Controllers (RJ45 • 32 physical outputs)
| Model | Total universes (DMX channels) | Universes per output 32 outs / 16 outs (V1) | Indicative max FPS** | Theoretical pixels*** RGB / RGBW | Best for | Actions |
|---|---|---|---|---|---|---|
| LITE V3 — 32Uhighest FPS headroom | 32 (16,384 ch) | 1 / 2 512 / 1,024 ch per out | ~102 | 5,440 / 4,096 | Pilots, retail features, touring rigs; fast chases & on-camera work. | |
| LITE V3 — 64U | 64 (32,768 ch) | 2 / 4 1,024 / 2,048 ch per out | ~80 | 10,880 / 8,192 | Medium-large walls, clubs and stages; balanced universes vs FPS. | |
| LITE V3 — 96U | 96 (49,152 ch) | 3 / 6 1,536 / 3,072 ch per out | ~60 | 16,320 / 12,288 | Feature ceilings, festival décor, multi-zone retail lighting. | |
| LITE V3 — 128U | 128 (65,536 ch) | 4 / 8 2,048 / 4,096 ch per out | ~48 | 21,760 / 16,384 | Large façades, immersive rooms, brand experiences. | |
| LITE V3 — 160U | 160 (81,920 ch) | 5 / 10 2,560 / 5,120 ch per out | ~38 | 27,200 / 20,480 | Big shows, long runs, dense arrays where mapping efficiency matters. | |
| LITE V3 — 192U | 192 (98,304 ch) | 6 / 12 3,072 / 6,144 ch per out | ~30 | 32,640 / 24,576 | Massive installs, stadium-scale canvases, XR/volume spaces. | |
All lite v3 models have 32 physical data outputs (RJ45). Enabling V1 mode (Setup → Outputs → “Enable V1 mode”) sets 16 outputs active, doubling universes per output while keeping the same total universes. | ||||||
Common features
• Integrated SPI controller: Ethernet to addressable LEDs (no extra hardware).
• Web-based configuration & firmware updates (no drivers).
• Art-Net/DMX compatibility with leading software
(Madrix, Resolume, MadMapper, TouchDesigner, VVVV, LightJams, etc.).
• European build, CE/FCC, 5-year warranty.
Need technical help?
• Getting Started (deskontroller.com)
• Wiring & Power (deskontroller.com)
• Pixel Protocols & IC index (deskontroller.com)
• Troubleshooting & FAQ (deskontroller.com)
Read full documentation on deskontroller.com · See price & availability on this page or visit deskontroller.com for LITE V3 details.
Applications + Warranty & support
A great fit for retail (live windows, experiential POP), boutique events and mid-size rooms (backdrops, DJ booths), XR/film with flicker-free content, and compact architectural work (lobbies, small façades, sculptures). High framerate nails hits and transitions, the portable form speeds load-ins, and flexible universes let you zone everything from a single node. Expert support for integration and best practices, fast shipping, and a 30-day return window. More impact with less hardware, lower risk, and a partner that has your back.
