deskontroller LITE V3 160U - Art-Net LED Pixel Controller images

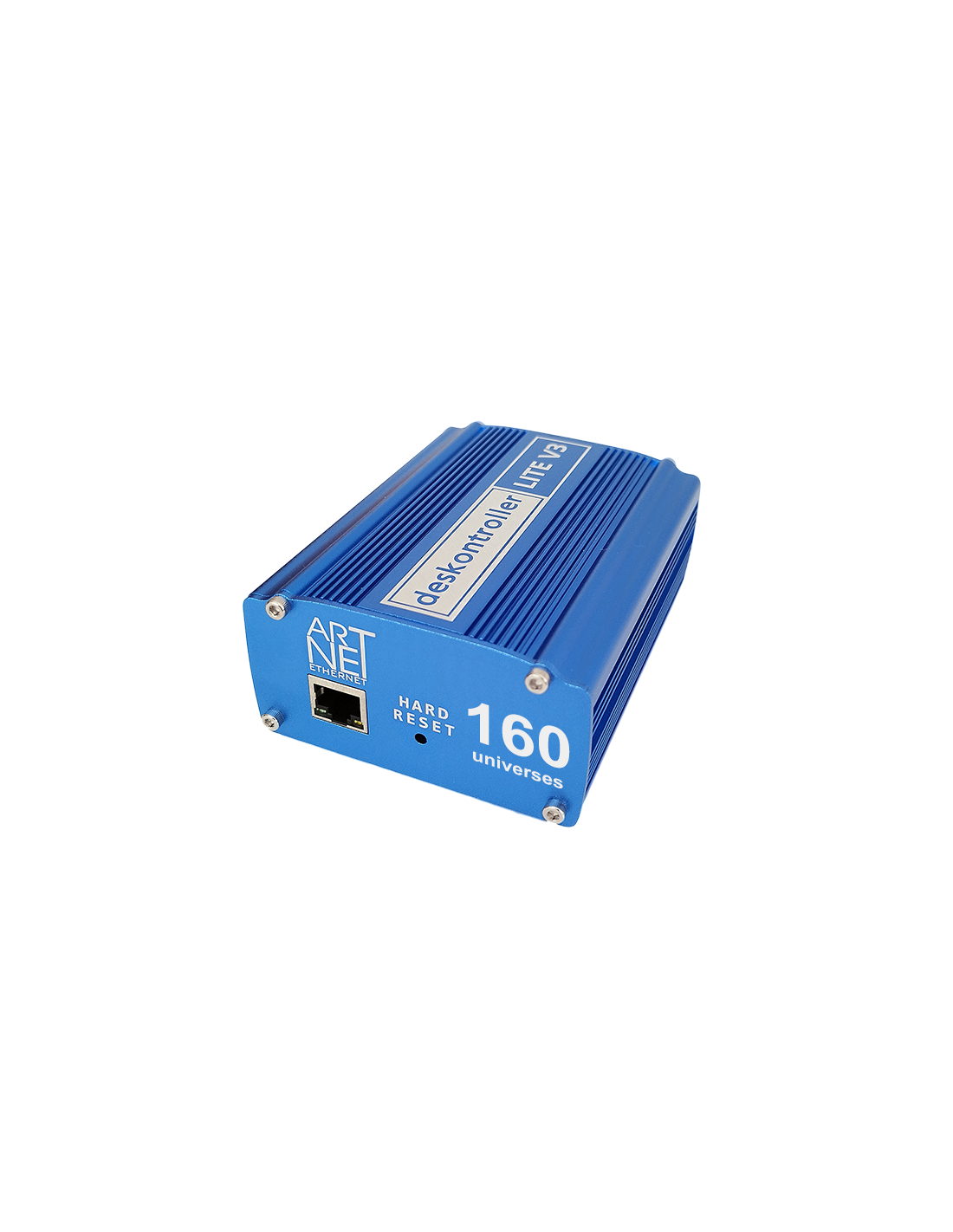

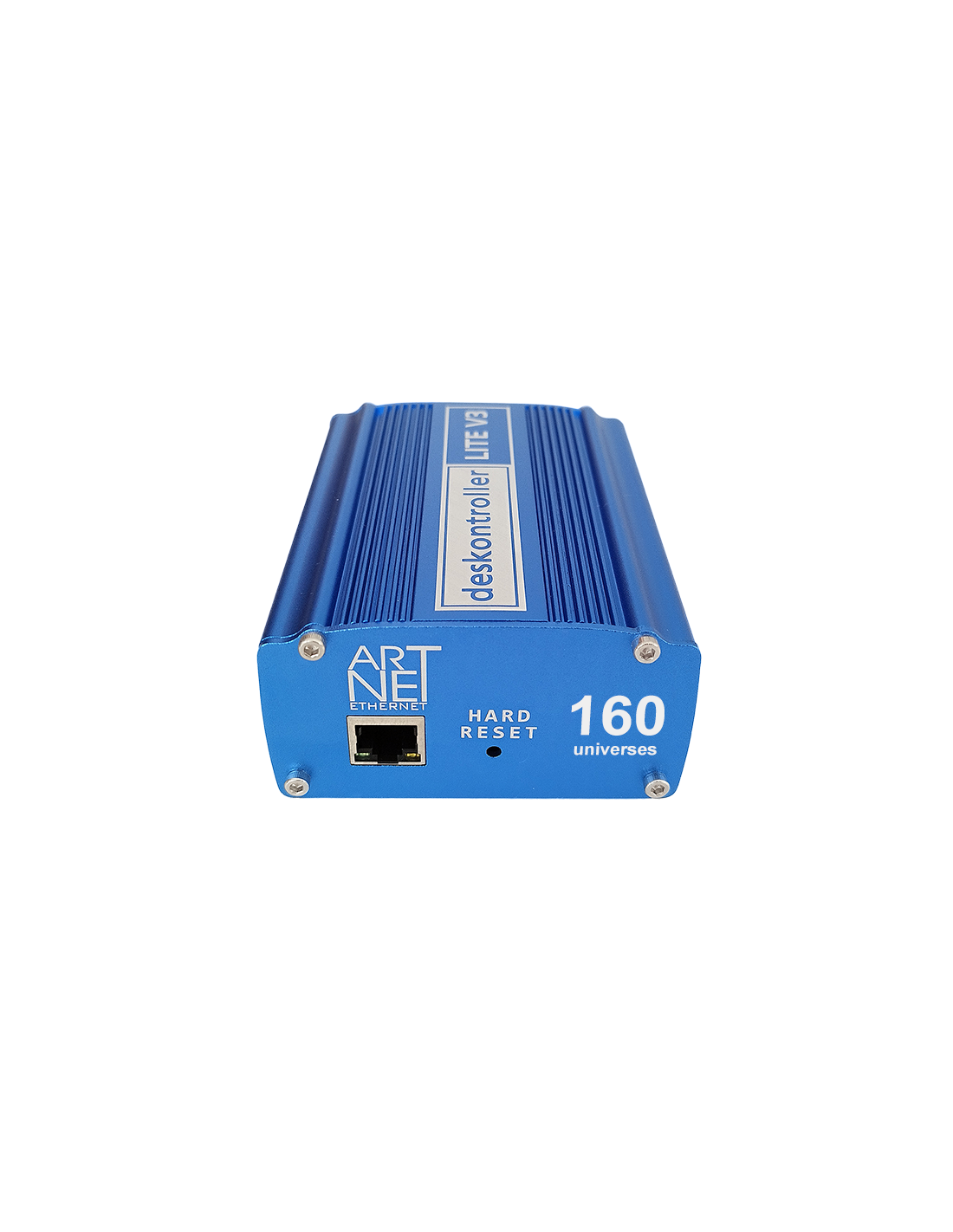

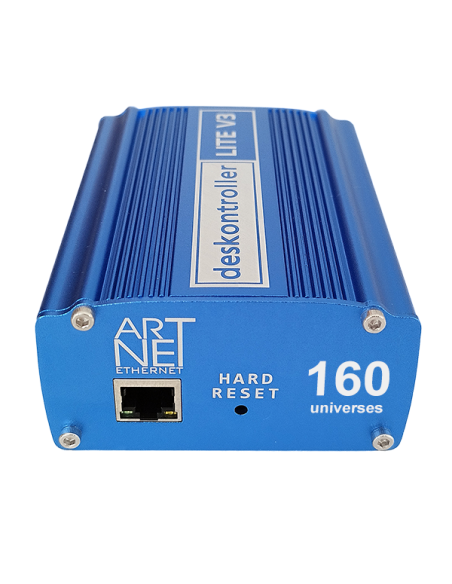

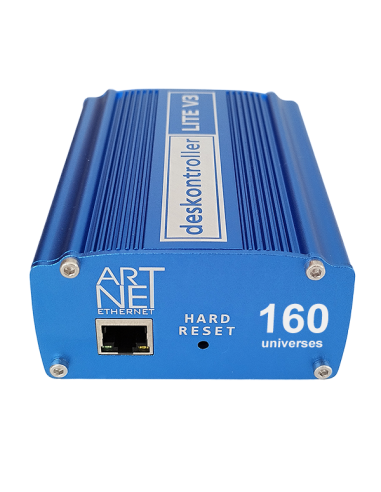

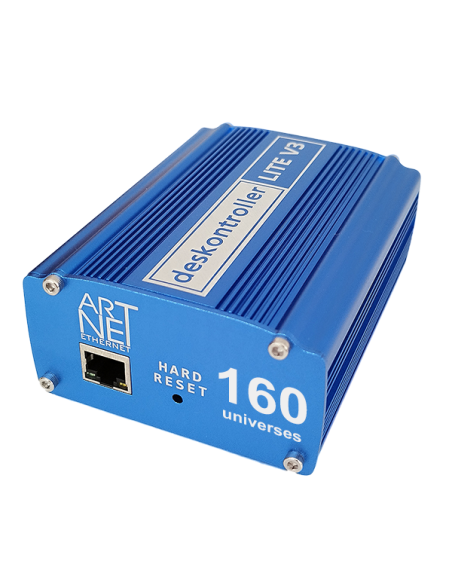

deskontroller LITE V3 160U - Art-Net LED Pixel Controller
High-capacity model for demanding Pixel LED installations that need more universe density per output while keeping a clear 32-output hardware structure.
32 physical outputs · 160 Art-Net universes · 81,920 DMX channels · up to 27,200 RGB pixels.
A high-capacity Art-Net LED Pixel Controller for large installations, architectural lighting, touring systems and immersive projects that need 5 universes per output in normal mode, before moving to the maximum-capacity 192U.
Browser setup · no proprietary software · Made in Europe · 5-year warranty.
In stock · Free worldwide shipping.
High-capacity project guidance
Considering the 160U for a demanding Pixel LED project?
The deskontroller LITE V3 160U is one of the high-capacity models in the range. It is usually selected when the project needs more density than the 128U can comfortably provide, with 5 Art-Net universes per output in normal mode, while keeping the installation structured around 32 physical outputs.
- Total universe count, pixel load and expected density across the installation
- Software, Art-Net workflow or control environment
- Application type: facade, immersive, stage, broadcast, touring or other large-scale setup
- Any key point such as RGBW, refresh priorities, output distribution or longer CAT6 runs
If the project is already in this capacity range, it can be useful to validate the model and output structure before purchase so the system is sized correctly from the start.
Technical information and support
This product page helps you choose the right model. If you need configuration details, pixel protocols, wiring guidance, downloads or deeper support content, you can open the full technical documentation on deskontroller.com.
What the 160U is and when to choose it
The deskontroller LITE V3 160U is a high-capacity model for demanding installations where both total universe count and per-output density are critical. It keeps the same 32 physical outputs as the rest of the platform, but increases the normal-mode capacity to 5 universes per output.
Choose the 160U when the 128U no longer gives enough headroom, but the project does not require the absolute maximum capacity of the 192U. It is the right fit for large systems that need serious output density with a controlled wiring structure.
- Large facades and high-pixel-density architectural surfaces
- Immersive attractions, touring systems and wide-surface installations
- Complex multi-zone projects where 128U capacity is not enough
- Professional integrations that need high capacity without moving to the maximum 192U model
What this model delivers
In the LITE V3 range, the 160U delivers high capacity and high output density:
In normal mode, this model works with 5 universes per output. In V1 / clock, it moves to 10 universes per active output, while keeping the same total 160 universes in the controller.
In practical terms, the 160U fits when the project needs a high-capacity step above the 128U, with more load per line, but still leaves the 192U clearly positioned as the maximum-capacity model.
Upgrade later if your project needs more capacity
Start with the model that fits your project today. deskontroller LITE V3 models from 32U to 160U can be upgraded later to a higher-capacity model, up to 192U, by upgrade key and without replacing the hardware.
The upgrade increases the available universes and model capacity. It does not change the physical output layout: the controller keeps the same hardware platform and the same output distribution logic.
The hardware warranty remains linked to the original purchase date of the unit.
How outputs are distributed in a real installation

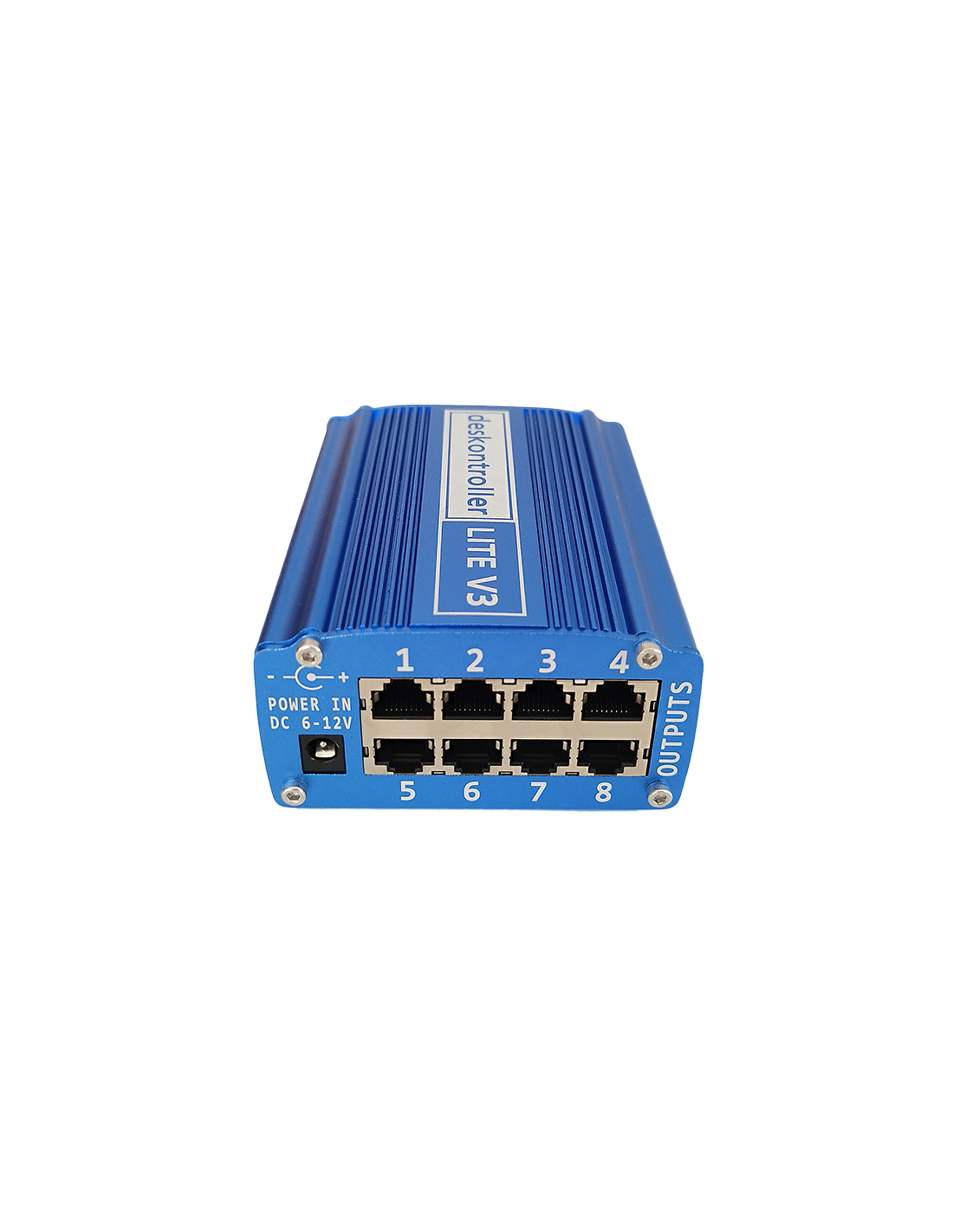

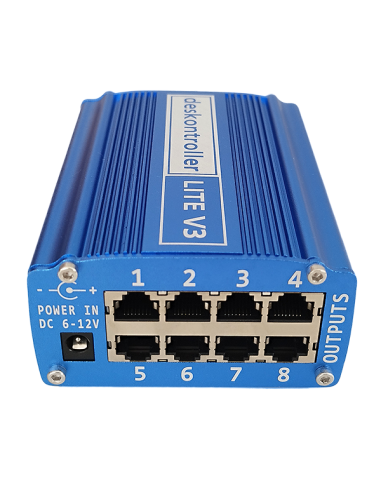

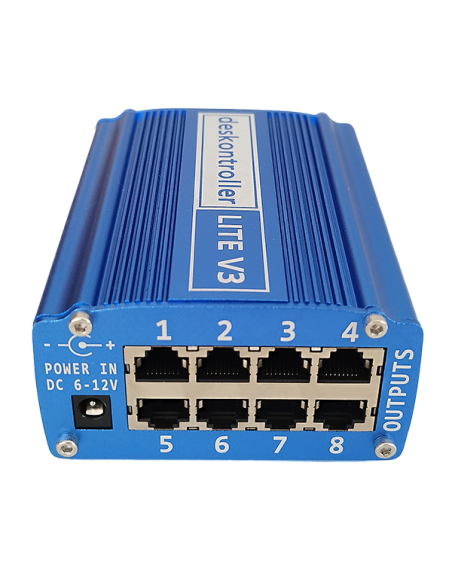

The deskontroller LITE V3 uses the same physical architecture across the whole range: 8 RJ45 output connectors that, through adapters, let you work with up to 32 physical data lines.
In real-world installations, the logic is straightforward: from the controller you run CAT6 UTP to the adapter, and from there you connect the pixel line or lines depending on the operating mode of that port.
- Up to 100 metres of CAT6 UTP between the deskontroller and the adapter, depending on installation conditions
- Normal mode: up to 4 outputs per RJ45 connector
- V1 or clocked families: 2 active outputs per RJ45 connector
- The physical architecture stays the same across all models; what changes is the number of universes per output
This approach helps distribute the installation more cleanly, avoid unnecessary concentration on each line, and take advantage of one of the key strengths of the system: 32 physical outputs to distribute load with a clear installation strategy.
Universes per output in the 160U
On the 160U, line density reaches a high point in the range. With 5 universes per output in normal mode, this model is built for projects where both total capacity and per-line load need to be substantial.
| Mode | Active outputs per RJ45 | Universes per output | Approx. capacity per output |
|---|---|---|---|
| Normal mode | 4 | 5 universes | ~850 RGB or ~640 RGBW |
| V1 / clock | 2 | 10 universes | ~1,700 RGB or ~1,280 RGBW |
This model is especially useful when 128U capacity is not enough and the project needs the next clear step up before considering the top-of-range 192U.
In normal mode, the adapter delivers 4 outputs using D1, D2, D3 and D4. In V1 or clock mode, it works with 2 active outputs using D1 and D2.
The key idea is simple: the physical architecture does not change; what changes is how many universes each output can carry depending on the model.
Integration with standard software and Web UI
The deskontroller LITE V3 160U is designed to integrate into standard Art-Net workflows without forcing you into proprietary software or drivers.
- Browser-based setup through the unit Web UI
- Standard Art-Net workflow with widely used industry software
- No dependency on a closed software ecosystem
- Useful for integrators, rental, AV, studios and professional projects
If you need to validate the software side, review the setup guides for network interface, target IP, universe range, FPS and patch structure.
Compatible with the LED pixel families commonly used in real projects
The system is compatible with a wide range of LED pixel families used in professional integration, including clockless and clocked options, in both RGB and RGBW configurations.
- Compatible with over 100 IC families
- Support for clockless and clocked signal types
- Works with RGB and RGBW strips or pixels
- LED power supply is independent from the controller
- Protocol family, colour order and RGB/RGBW mode are configured globally on the unit
For compatibility details, IC families and protocol selection criteria, see the dedicated guide on deskontroller.com.
Quick summary
Help refine the choice
If you want to validate the 160U within the range, understand the controller role, compare the Art-Net to SPI workflow or review output distribution, these are the most useful paths.
What changes as you move up the range
The whole range shares the same physical architecture. What changes from one model to another is the total number of universes, the approximate capacity per output and the balance between distribution and load.
| Model | Universes | Max. FPS | Approx. RGB | Approx. RGBW | Normal mode | V1 / clock | Focus |
|---|---|---|---|---|---|---|---|
| 32U | 32 | ~102 | 5,440 | 4,096 | 1 universe/output | 2 universes/output | Lowest load per output |
| 64U | 64 | ~80 | 10,880 | 8,192 | 2 universes/output | 4 universes/output | Balanced capacity step |
| 96U | 96 | ~60 | 16,320 | 12,288 | 3 universes/output | 6 universes/output | Practical mid-range capacity |
| 128U | 128 | ~48 | 21,760 | 16,384 | 4 universes/output | 8 universes/output | Large-format capacity |
| 160UCurrent | 160 | ~38 | 27,200 | 20,480 | 5 universes/output | 10 universes/output | High-capacity projects |
| 192U | 192 | ~34 | 32,640 | 24,576 | 6 universes/output | 12 universes/output | Maximum capacity in the range |
Art-Net hardware for demanding high-capacity Pixel LED installations
The deskontroller LITE V3 160U is built for integrators, lighting professionals, rental, AV and studios that need high Art-Net capacity, 5 universes per output in normal mode and a clear 32-output hardware architecture.
It keeps the approach that defines the deskontroller range: 32 physical outputs, browser setup through the Web UI, no proprietary software, European manufacturing and a 5-year warranty.
Trust signals
- Made in Europe
- 5-year warranty on deskontroller products
- 32 physical outputs for high-capacity load distribution
- Compatible with standard Art-Net workflows
- Documentation and technical support available
-
ReferenceDKLITEV3-160
-
MPNDKLITEV3-160
