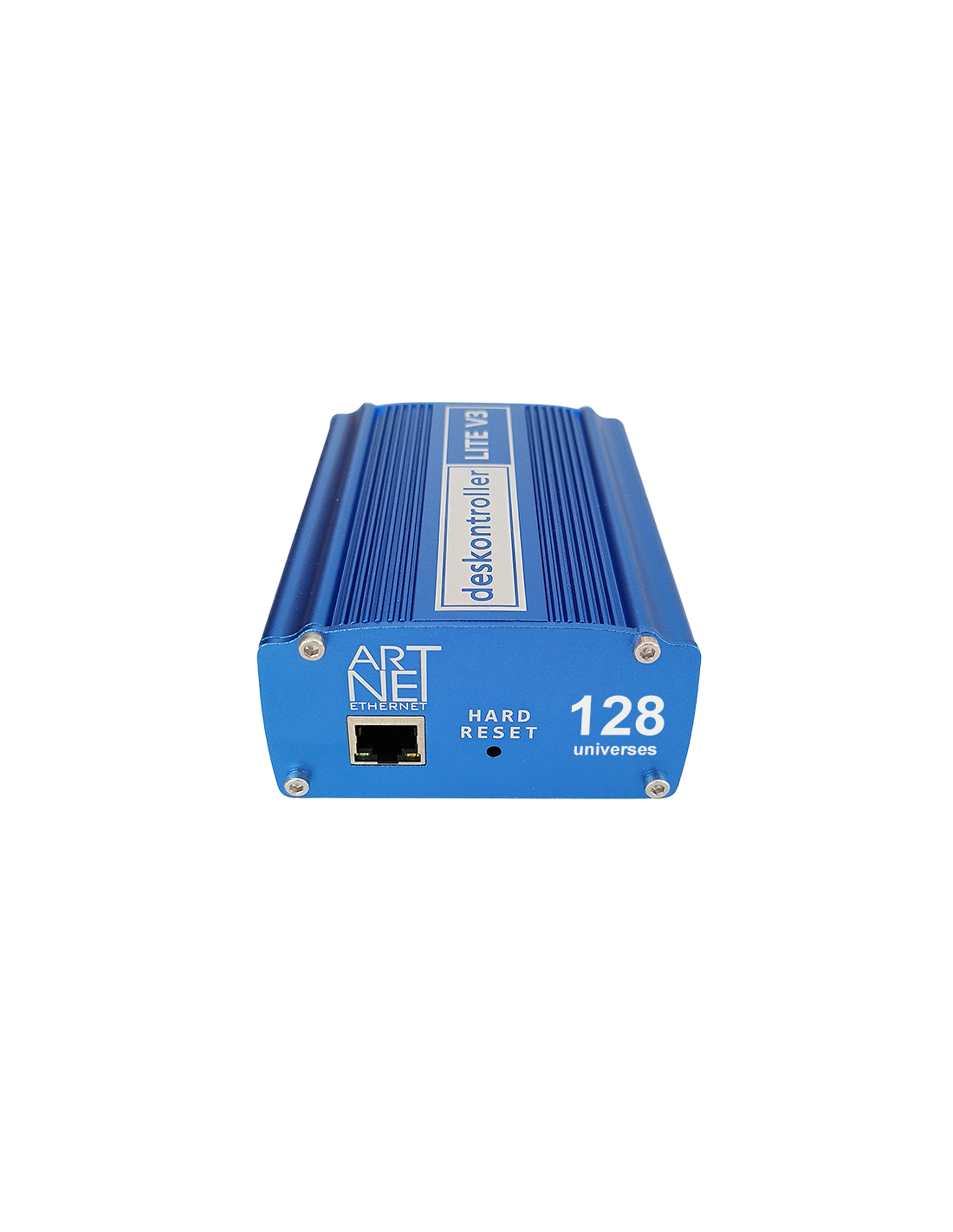

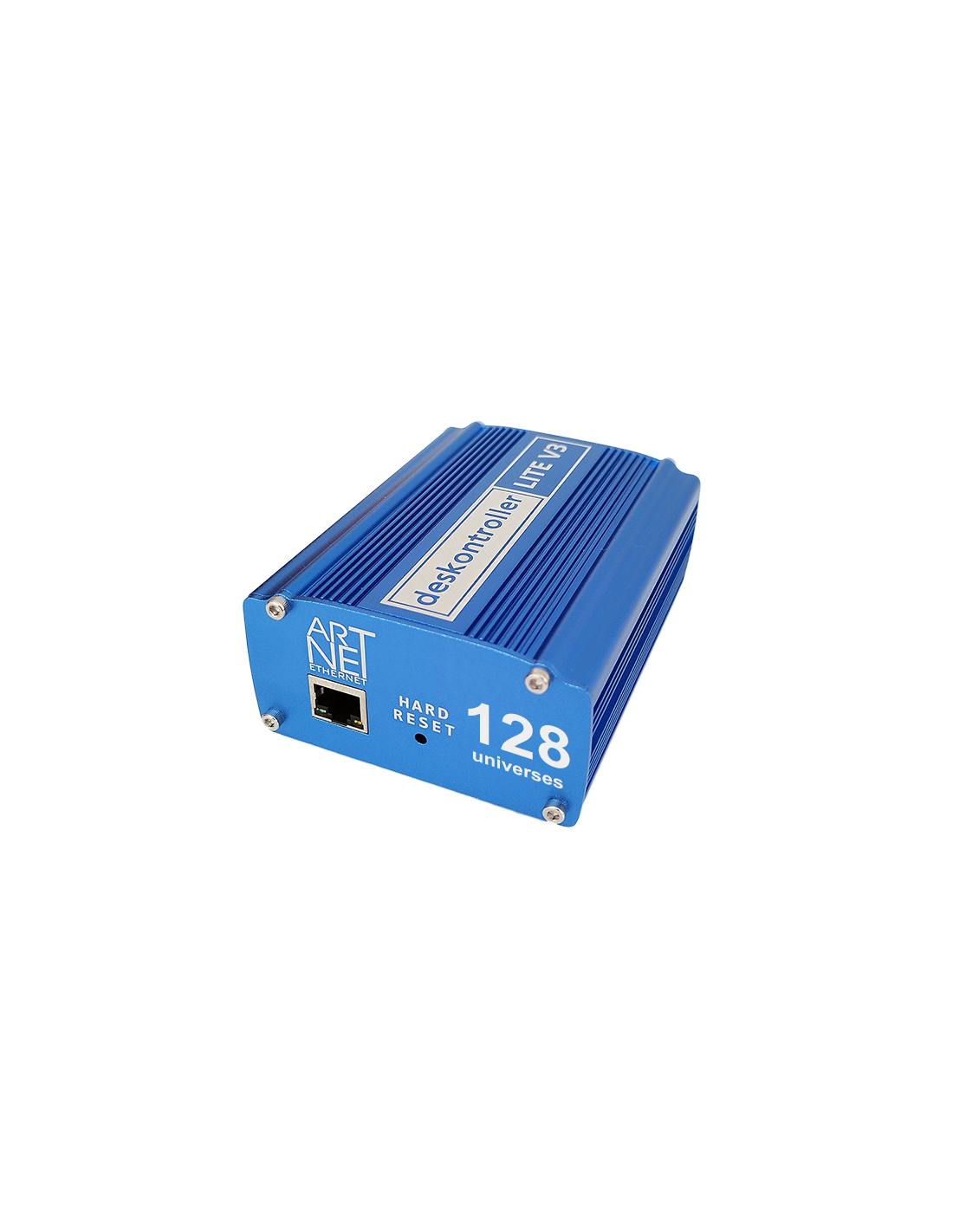

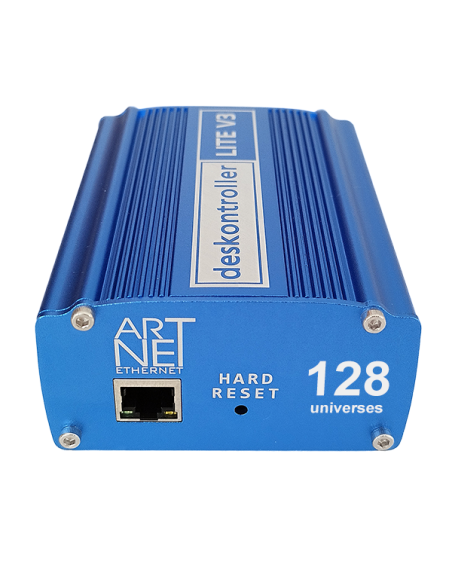

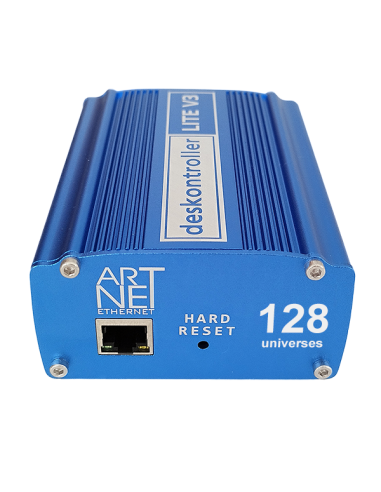

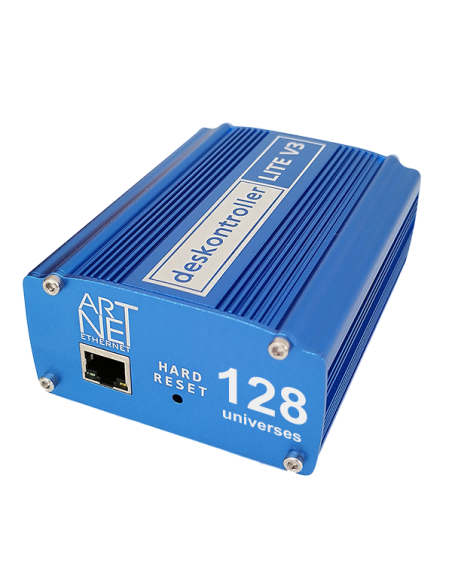

deskontroller LITE V3 - Art-Net Pixel Controller 128 Universes
Advanced capacity for large-scale rigs, facades and multi-zone projects.
32 physical outputs · 128 Art-Net universes · 65,536 channels · up to 21,760 RGB pixels.
For large stages, facades, broadcast and pixel mapping projects requiring more universes per output and headroom for high-density content.
In stock · Free 24h shipping · EU built · 5-year warranty.
Where does 128U fit best?
128U is the step into serious large-format capacity.
The 128U is a strong choice for large-format projects where per-output capacity needs to be substantial and the total universe count must support complex or multi-zone installations. If 96U feels like it might run short in a demanding project, 128U is usually the right move.
Technical information and support
This product page helps you choose the right model. If you need configuration details, pixel protocols, wiring guidance, downloads or deeper support content, you can open the full technical documentation on deskontroller.com.
What the 128U is and where it fits best
The deskontroller LITE V3 128U is a clear step into the high-capacity part of the range. With 4 universes per output in normal mode, it is designed for projects where load per line is substantial and total capacity needs to support complex, multi-zone or large-format installations.
It is the natural choice when the 96U starts to feel limiting and the project demands more headroom per output without yet reaching the top of the range.
- Large-format installations where per-output capacity needs to be high
- Complex multi-zone projects that require significant total universe headroom
- Architectural and scenic work where each line covers large surfaces or high pixel density
- Projects where the 96U is not enough but moving to 160U or 192U is not yet justified
What this model delivers
In the LITE V3 range, the 128U represents the entry into serious large-format capacity:
In normal mode, this model works with 4 universes per output. In V1 / clock, it moves to 8 universes per active output, while keeping the same total 128 universes in the controller.
In practical terms, the 128U fits when you need substantial per-output capacity and a total universe count that supports complex or multi-zone installations comfortably.
Upgrade later if your project needs more capacity
Start with the model that fits your project today. deskontroller LITE V3 models from 32U to 160U can be upgraded later to a higher-capacity model, up to 192U, by upgrade key and without replacing the hardware.
The upgrade increases the available universes and model capacity. It does not change the physical output layout: the controller keeps the same hardware platform and the same output distribution logic.
The hardware warranty remains linked to the original purchase date of the unit.
How outputs are distributed in a real installation

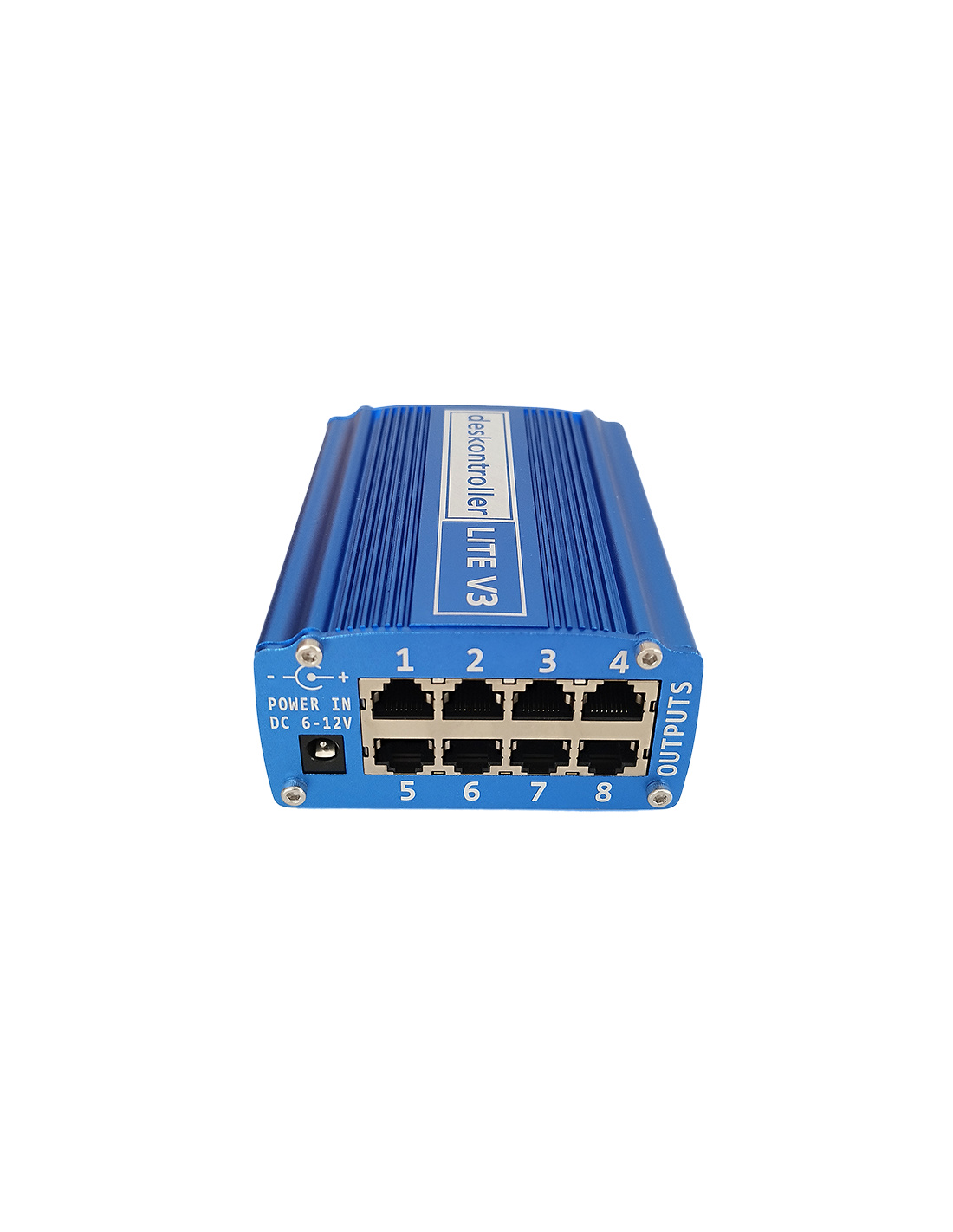

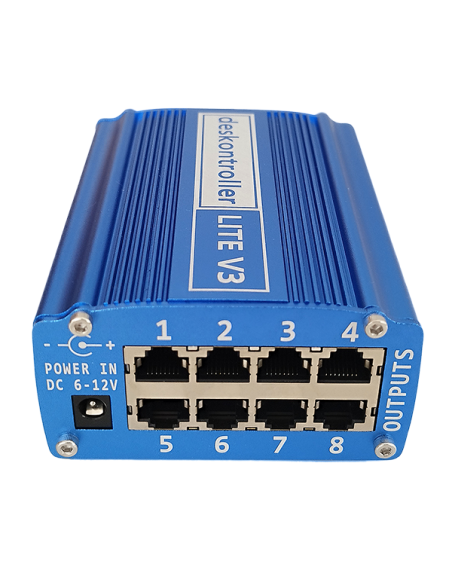

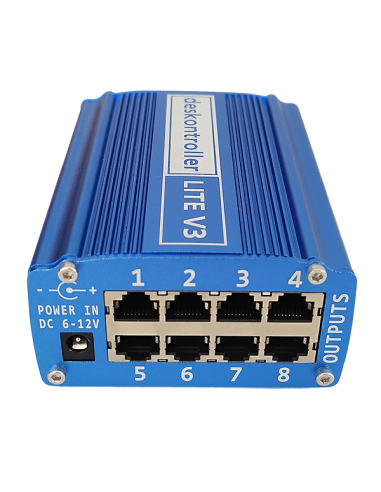

The deskontroller LITE V3 uses the same physical architecture across the whole range: 8 RJ45 output connectors that, through adapters, let you work with up to 32 physical data lines.
In real-world installations, the logic is straightforward: from the controller you run CAT6 UTP to the adapter, and from there you connect the pixel line or lines depending on the operating mode of that port.
- Up to 100 metres of CAT6 UTP between the deskontroller and the adapter, depending on installation conditions
- Normal mode: up to 4 outputs per RJ45 connector
- V1 or clocked families: 2 active outputs per RJ45 connector
- The physical architecture stays the same across all models; what changes is the number of universes per output
This approach helps distribute the installation more cleanly, avoid unnecessary concentration on each line, and take advantage of one of the key strengths of the system: 32 physical outputs to distribute load with a clear installation strategy.
Universes per output in the 128U
On the 128U, the shift to 4 universes per output in normal mode marks a clear increase in per-line density. This model is built for installations where each output needs to carry a high load and total capacity is a primary concern.
| Mode | Active outputs per RJ45 | Universes per output | Approx. capacity per output |
|---|---|---|---|
| Normal mode | 4 | 4 universes | ~680 RGB or ~512 RGBW |
| V1 / clock | 2 | 8 universes | ~1,360 RGB or ~1,024 RGBW |
This model is especially useful when you need high per-output capacity and the total universe count of the 96U is no longer sufficient for the project scope.
In normal mode, the adapter delivers 4 outputs using D1, D2, D3 and D4. In V1 or clock mode, it works with 2 active outputs using D1 and D2.
The key idea is simple: the physical architecture does not change; what changes is how many universes each output can carry depending on the model.
Integration with standard software and Web UI
The deskontroller LITE V3 128U is designed to integrate into standard Art-Net workflows without forcing you into proprietary software or drivers.

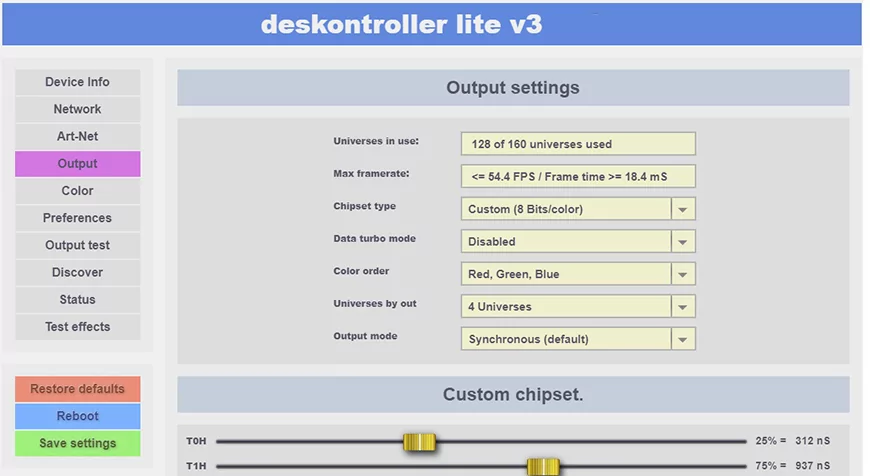

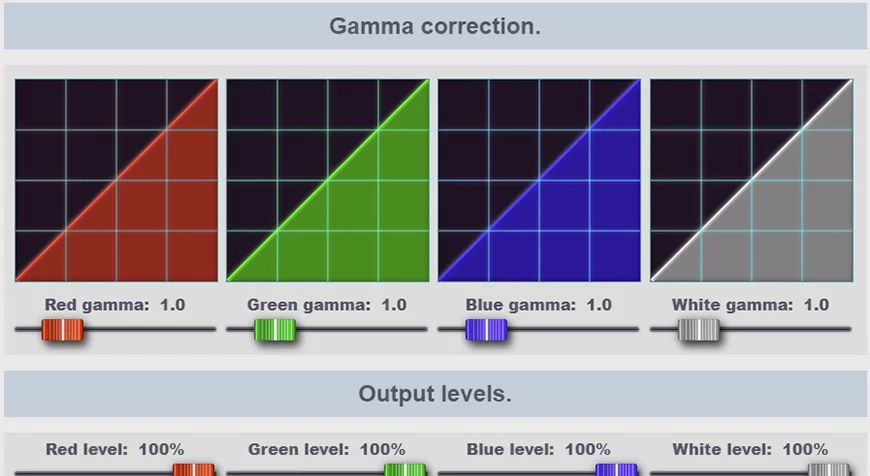

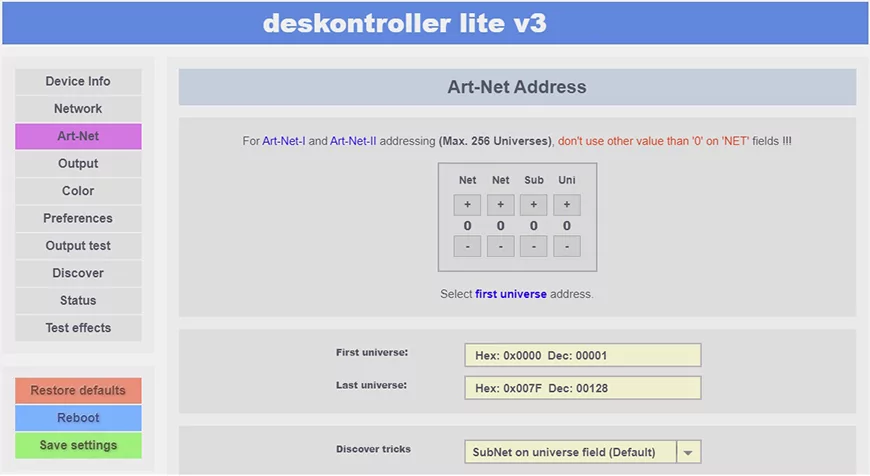

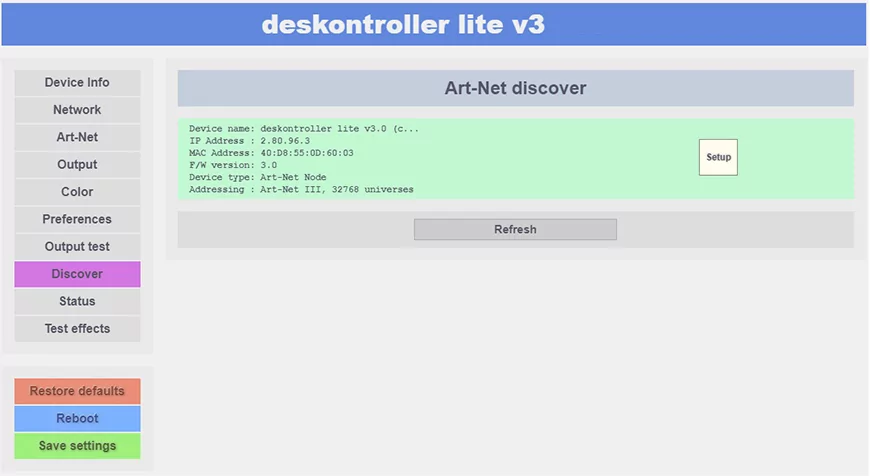

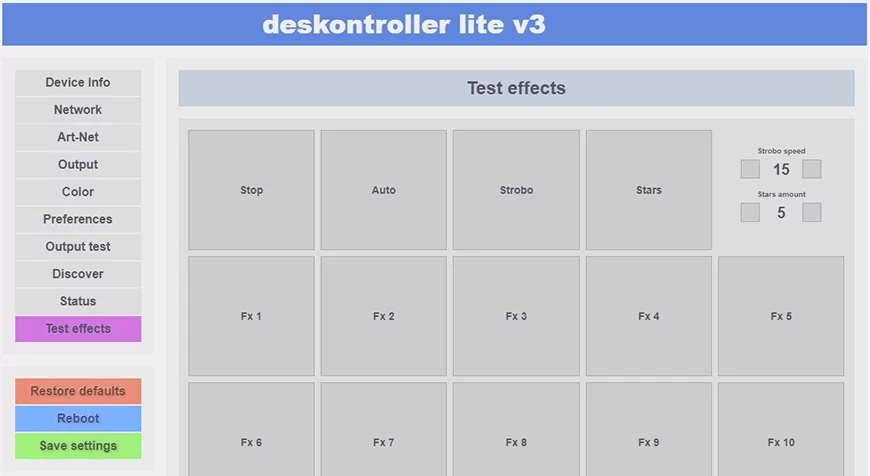

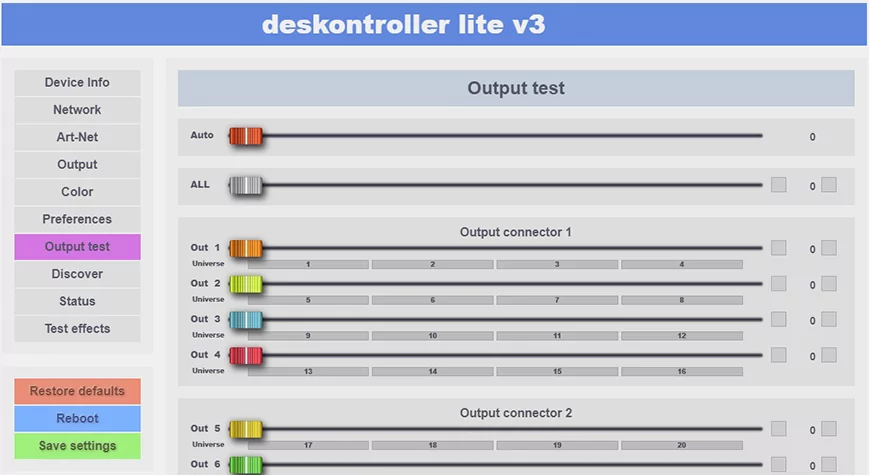

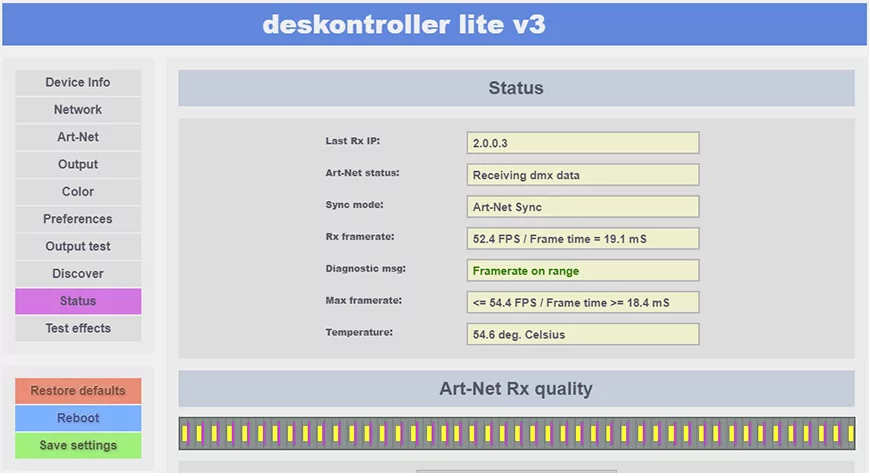

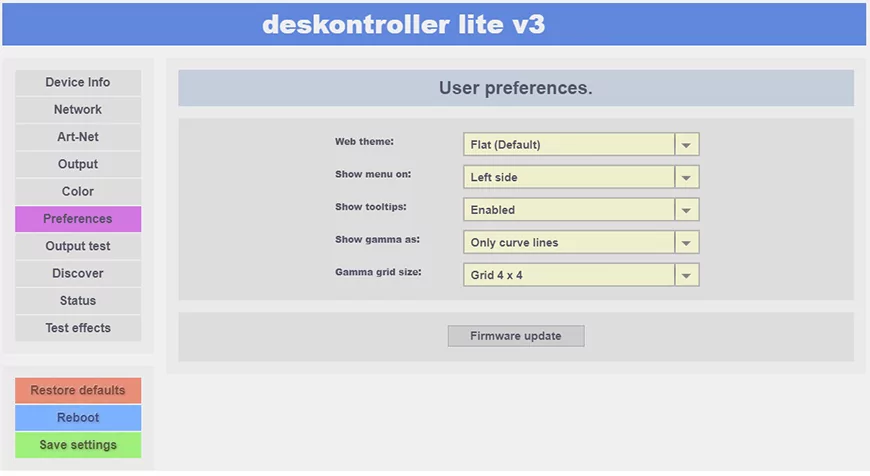

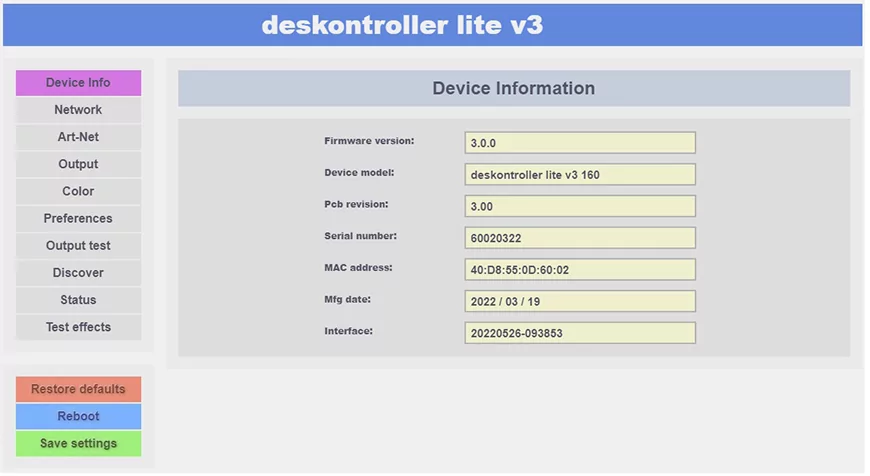

- Browser-based setup through the unit Web UI
- Standard Art-Net workflow with widely used industry software
- No dependency on a closed software ecosystem
- Useful for integrators, rental, AV, studios and professional projects

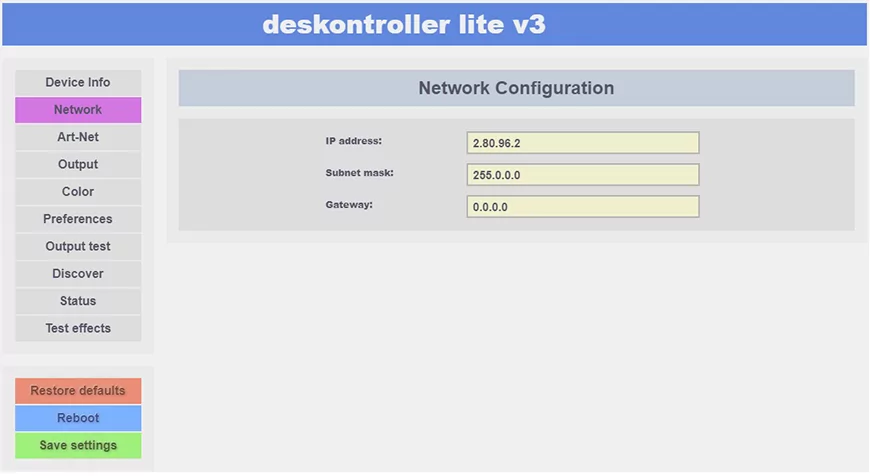

If you need to validate the software side, review the setup guides for network interface, target IP, universe range, FPS and patch structure.
Compatible with the LED pixel families commonly used in real projects
The system is compatible with a wide range of LED pixel families used in professional integration, including clockless and clocked options, in both RGB and RGBW configurations.
- Compatible with over 100 IC families
- Support for clockless and clocked signal types
- Works with RGB and RGBW strips or pixels
- LED power supply is independent from the controller
- Protocol family, colour order and RGB/RGBW mode are configured globally on the unit
For compatibility details, IC families and protocol selection criteria, see the dedicated guide on deskontroller.com.
Quick summary
Help refine the choice
If you want to validate this model within the range, check output distribution or plan future capacity, these are the most useful routes.
What changes as you move up the range
The whole range shares the same physical architecture. What changes from one model to another is the total number of universes, the approximate capacity per output and the balance between distribution and load.
| Model | Universes | Max. FPS | Approx. RGB | Approx. RGBW | Normal mode | V1 / clock | Focus |
|---|---|---|---|---|---|---|---|
| 32U | 32 | ~102 | 5,440 | 4,096 | 1 universe/output | 2 universes/output | Highest FPS headroom |
| 64U | 64 | ~80 | 10,880 | 8,192 | 2 universes/output | 4 universes/output | Balanced capacity step |
| 96U | 96 | ~60 | 16,320 | 12,288 | 3 universes/output | 6 universes/output | Mid-range capacity balance |
| 128UCurrent | 128 | ~48 | 21,760 | 16,384 | 4 universes/output | 8 universes/output | Large-format capacity |
| 160U | 160 | ~38 | 27,200 | 20,480 | 5 universes/output | 10 universes/output | High capacity for demanding projects |
| 192U | 192 | ~30 | 32,640 | 24,576 | 6 universes/output | 12 universes/output | Maximum capacity in the range |
Art-Net hardware for serious installations, with real support
The deskontroller LITE V3 128U is built for integrators, lighting professionals, rental, AV and studios that need an Art-Net controller that is clear to configure, stable in the installation and easy to document.
It keeps the approach that defines the deskontroller range: 32 physical outputs, Web UI setup, no dedicated software required, European manufacturing and a 5-year warranty.
Trust signals
- Made in Europe
- 5-year warranty on deskontroller products
- Architecture designed to distribute load more cleanly
- Compatible with standard Art-Net workflows
- Documentation and technical support available
-
ReferenceDKLITEV3-128
-
MPNDKLITEV3-128
