Balanced capacity and refresh for real-world venues and touring.
Multi-zone without losing motion clarity.
Driver-free web setup.
64 Art-Net universes (32,768 channels).

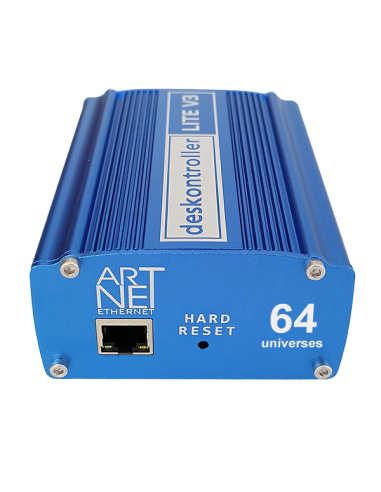

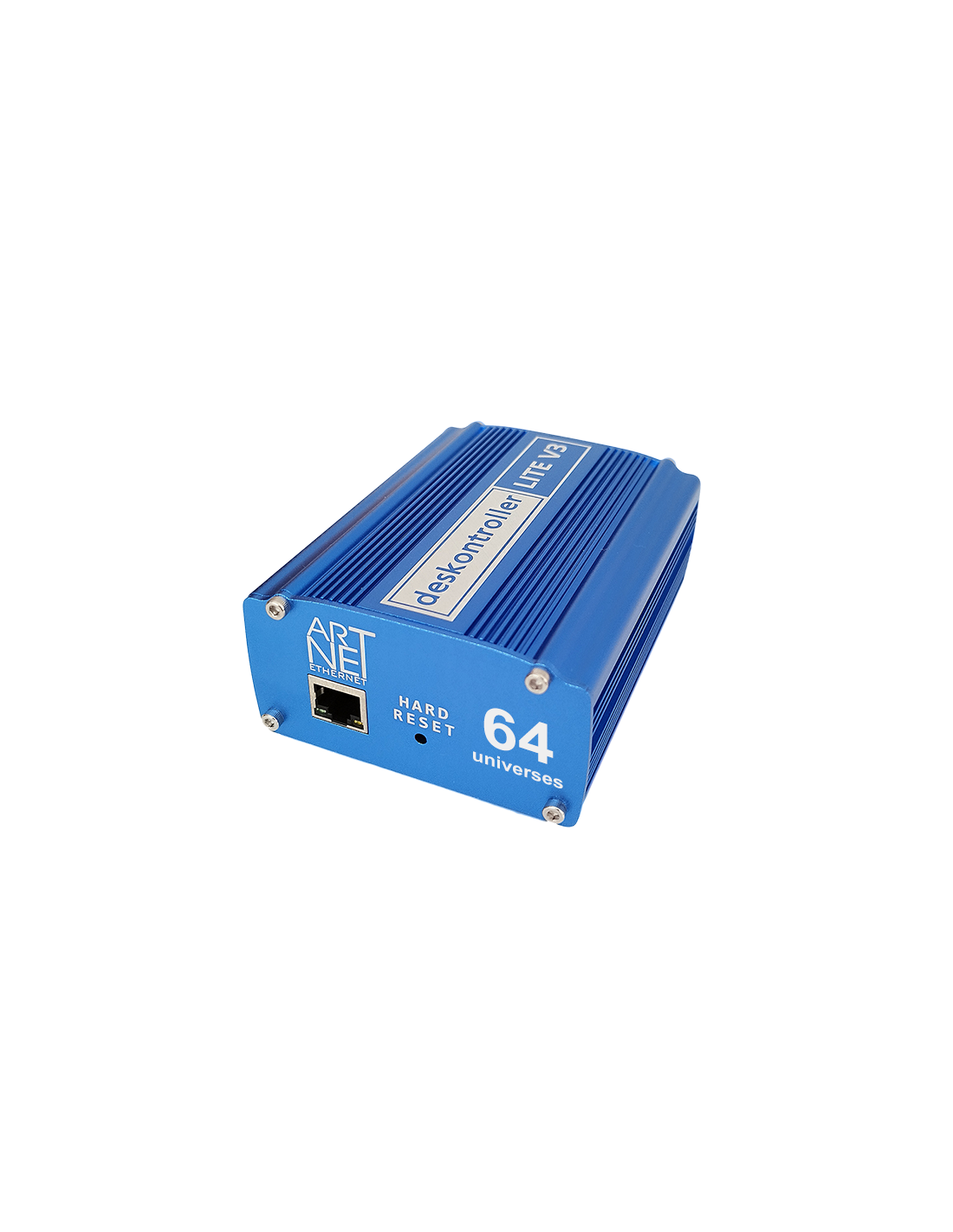

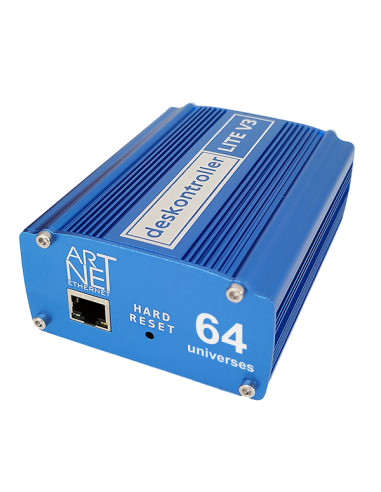

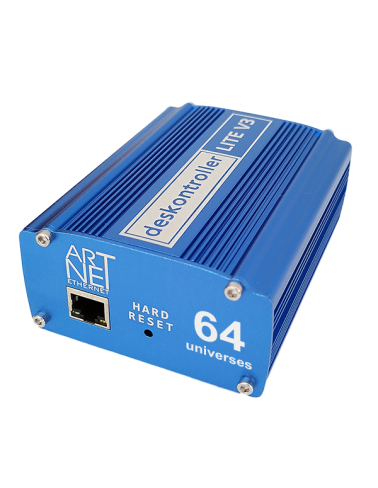

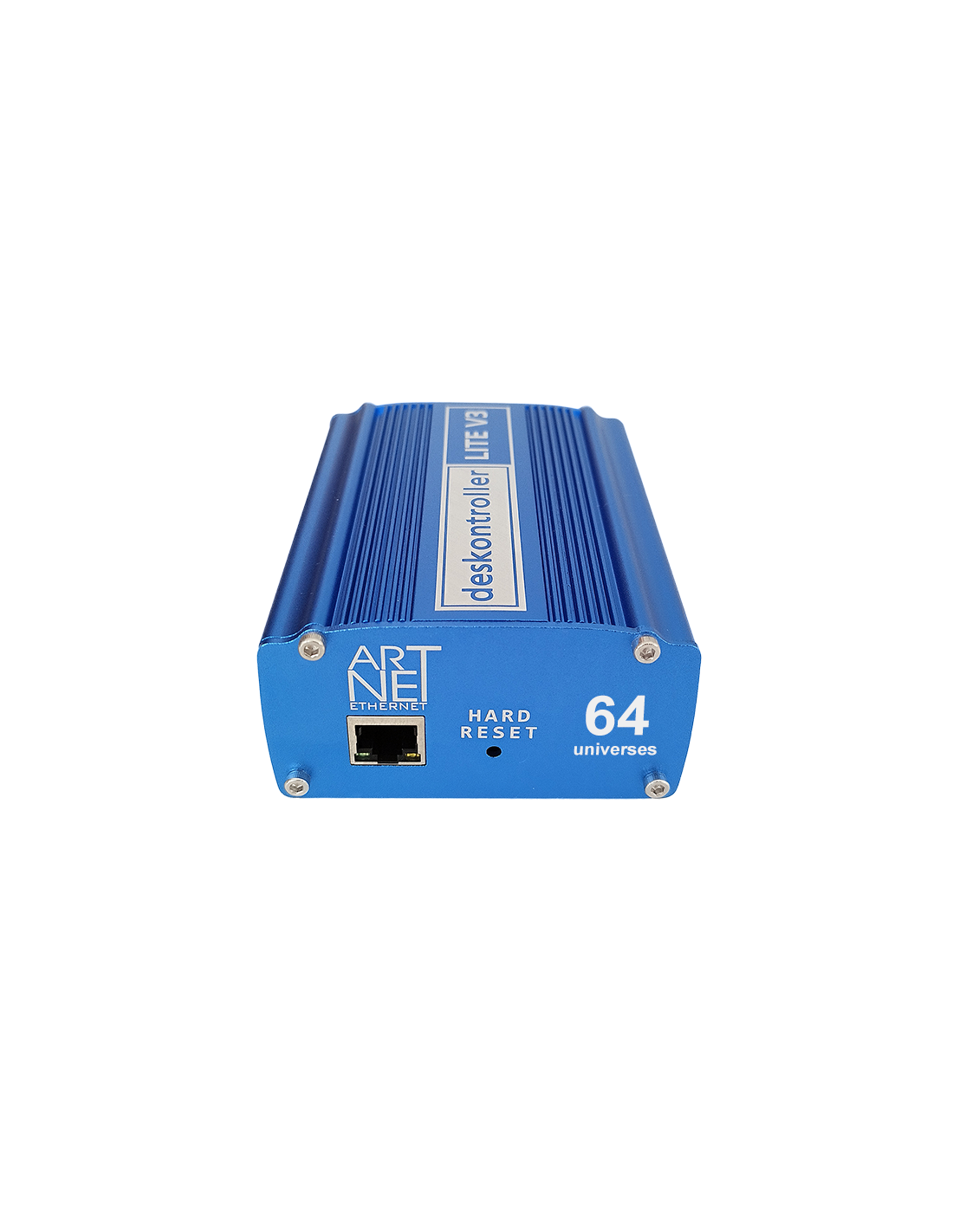

The deskontroller LITE V3 – 64 universes hits the sweet spot between pixel capacity and visual smoothness for venues, clubs, and theaters that have outgrown 32U. It drives 64 universes (32,768 channels ≈ 10,880 RGB pixels) with up to 89.7 FPS in normal and 102 FPS in turbo, so fast chases, strobes, and high-speed sweeps render crisp and punchy. The compact, rugged build speeds touring setups, and the refresh headroom enables camera-friendly looks for broadcast/streaming. If you need more zones, more density, and more impact without overcomplicating the rig, 64U is your price/performance sweet spot.
Native Art-Net I–IV; drop-in with MADRIX, Resolume, MadMapper, TouchDesigner, GrandMA (via Art-Net), MagicQ, xLights, QLC+, Jinx!, etc. With 64 universes, split content across layers (backdrop, wings, ceiling), blend matrices and long strip runs, and keep latency tight for time-critical hits. Perfect when you need to scale up without changing tools.

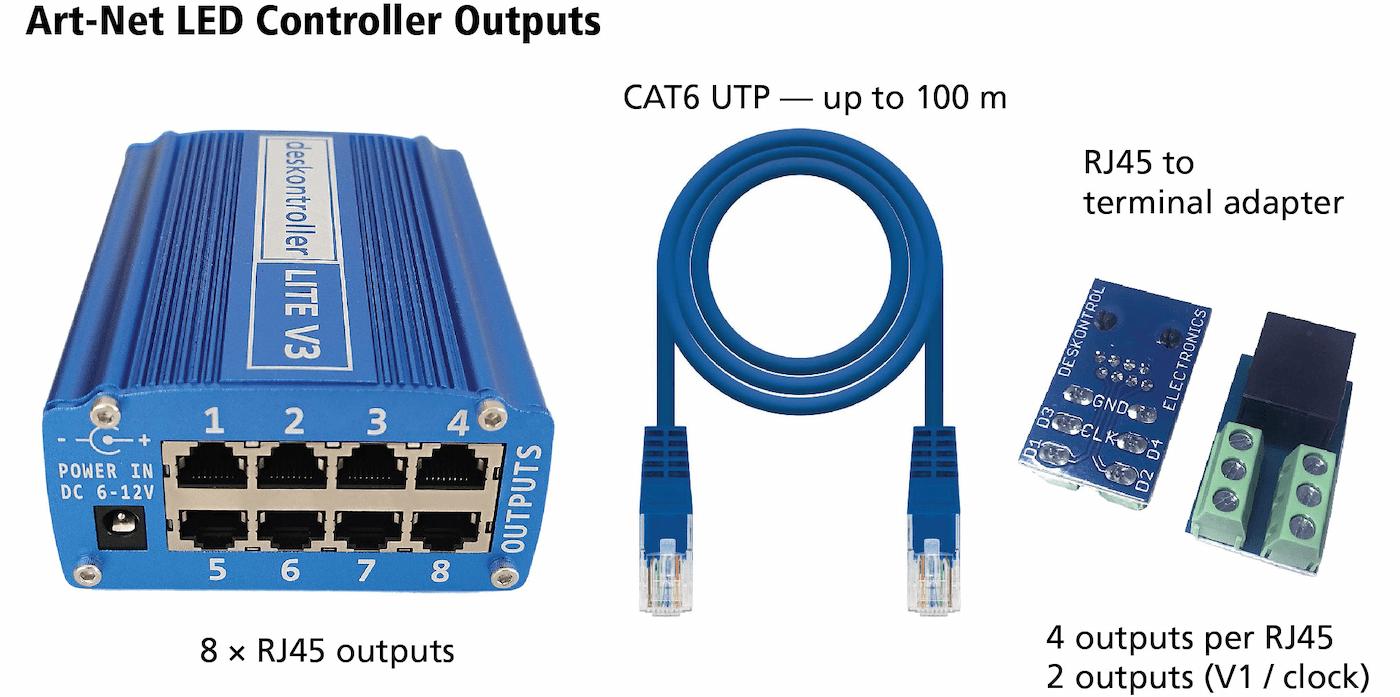

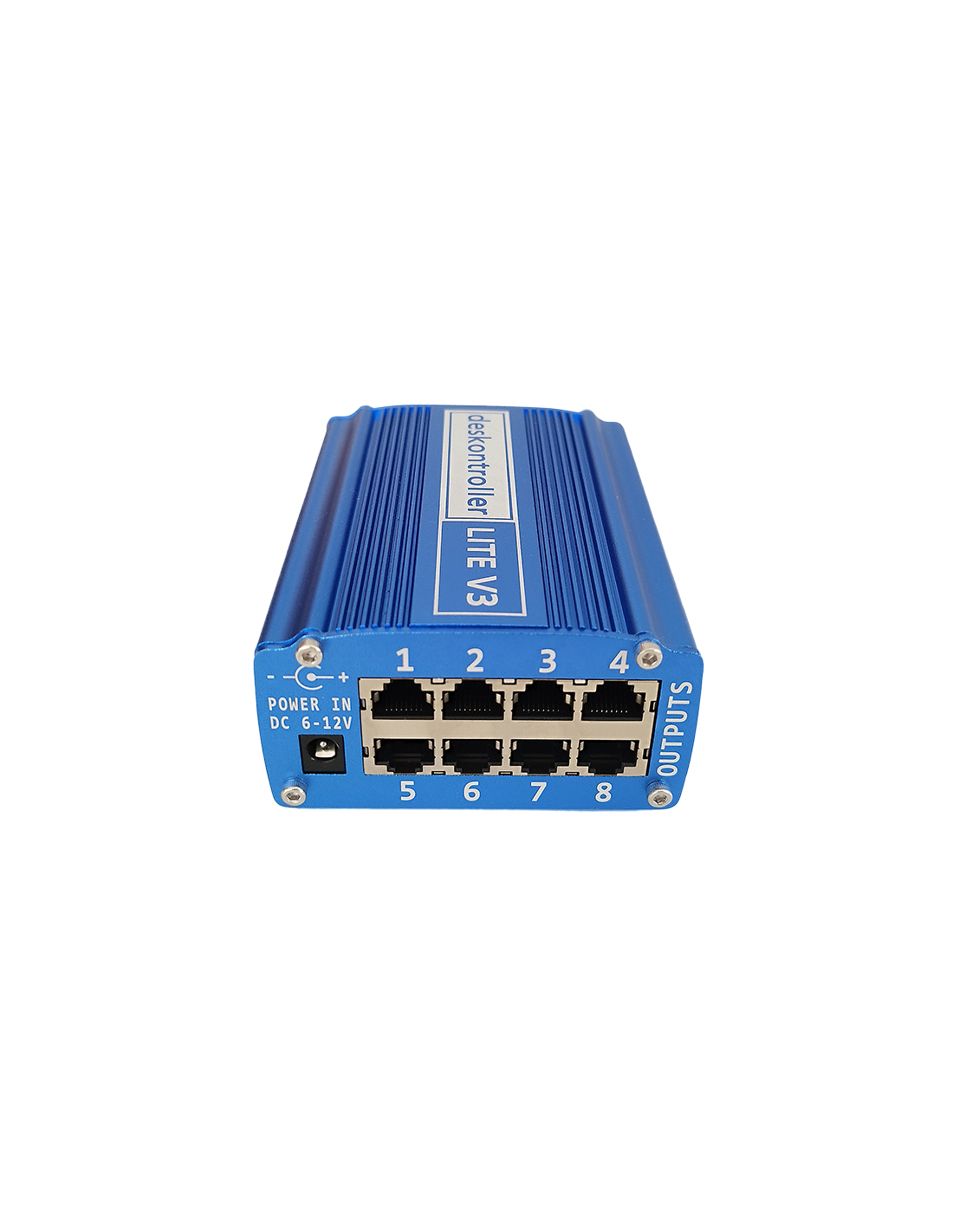

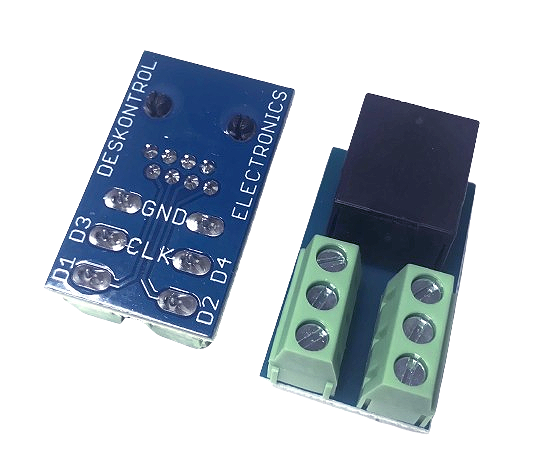

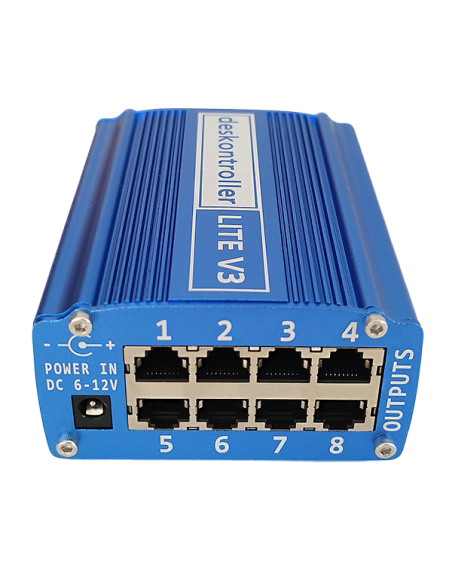

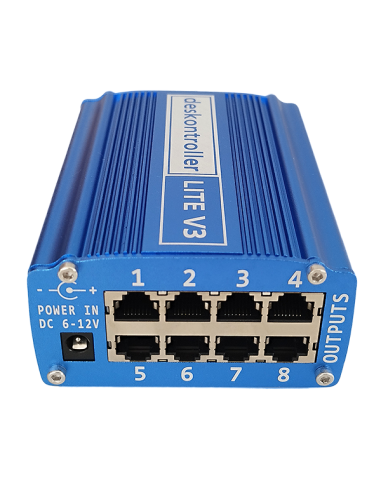

You get 8× RJ45 providing 32 SPI lines for clockless LEDs (WS281x) or 16 lines for clocked (APA102/HD107). Includes 8 RJ45-to-terminal adapters and supports up to 100 m CAT6 to the first pixel to centralize control and zone the venue without extra boxes. Tidy wiring, fewer failure points, and faster service per port/zone.
The deskontroller lite v3 64U supports 32 or 16 outputs:
32-output mode (2U/port): up to 340 RGB or 256 RGBW pixels per output. Total: up to 10,880 RGB or 8,192 RGBW pixels.
16-output mode (4U/port): up to 680 RGB or 512 RGBW per output.
Per-port universe assignment (2U/4U), flexible mapping, and port mirroring.
5 V data; independent LED power (5–48 V); long UTP runs.

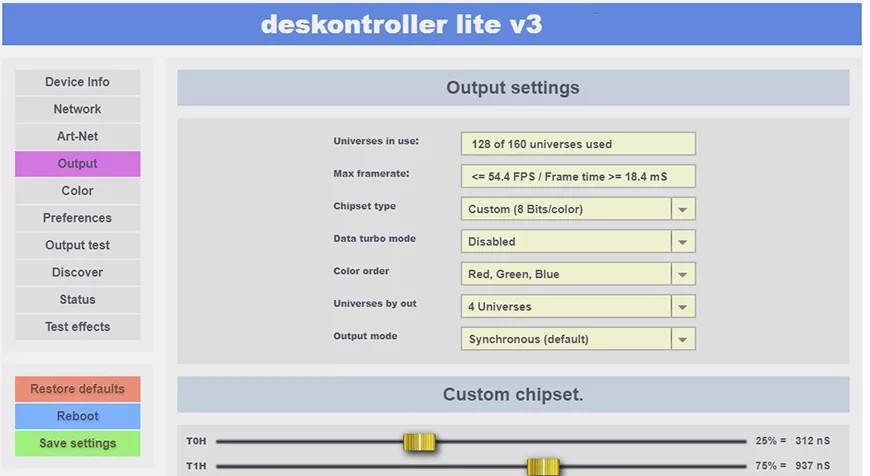

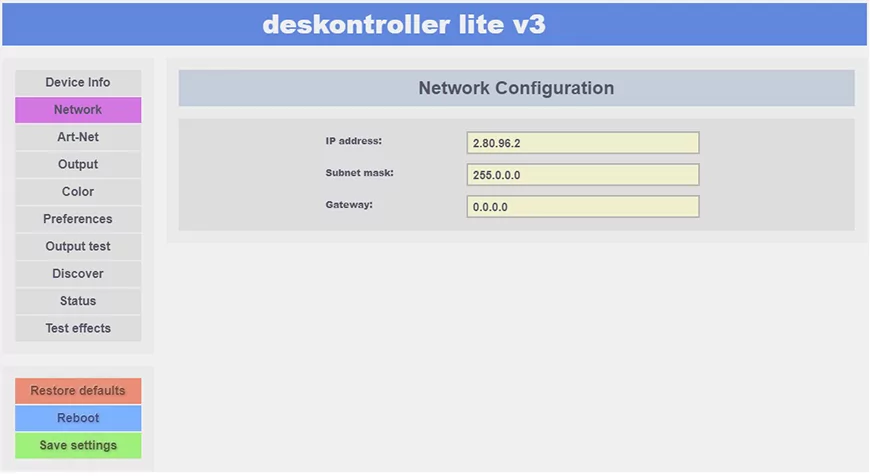

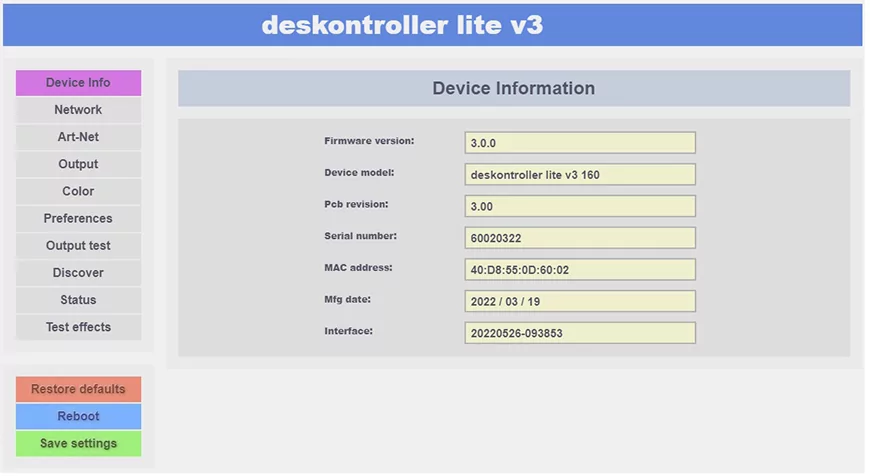

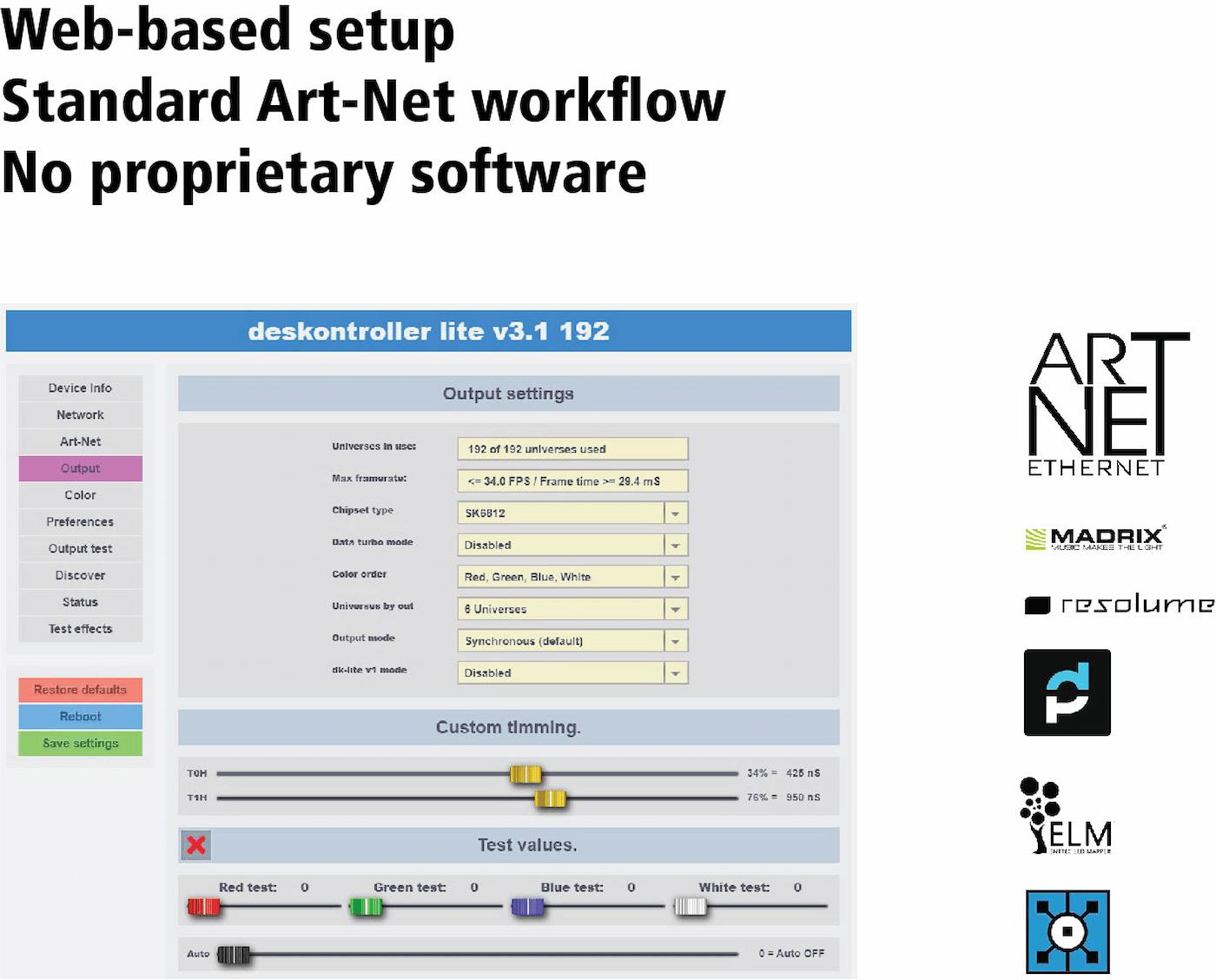

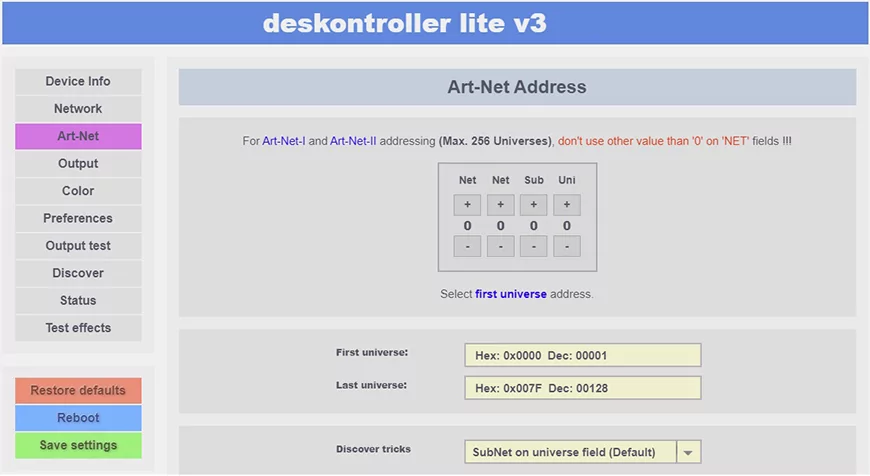

All in your browser: network/IP, Art-Net ranges, per-output mapping, chipset, color order, gamma. Live Status (FPS/signal health) speeds troubleshooting; per-output pixel tests validate wiring/addressing in minutes. Saved profiles let you clone units and roll back to a known-good instantly.

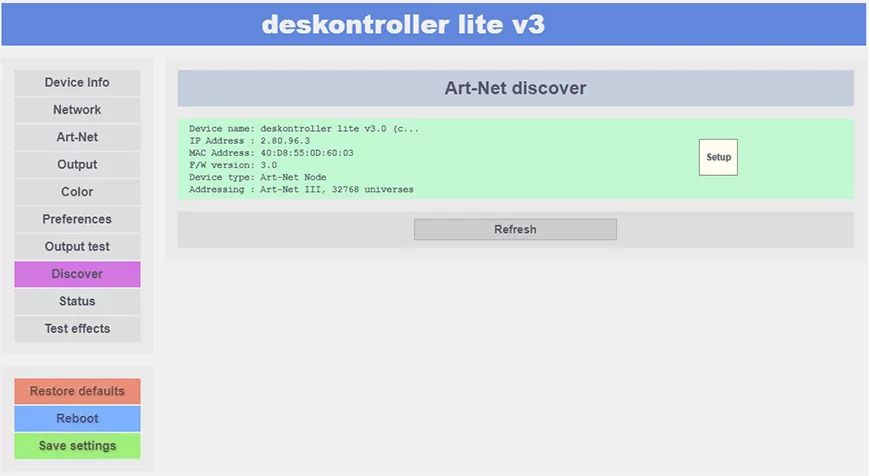

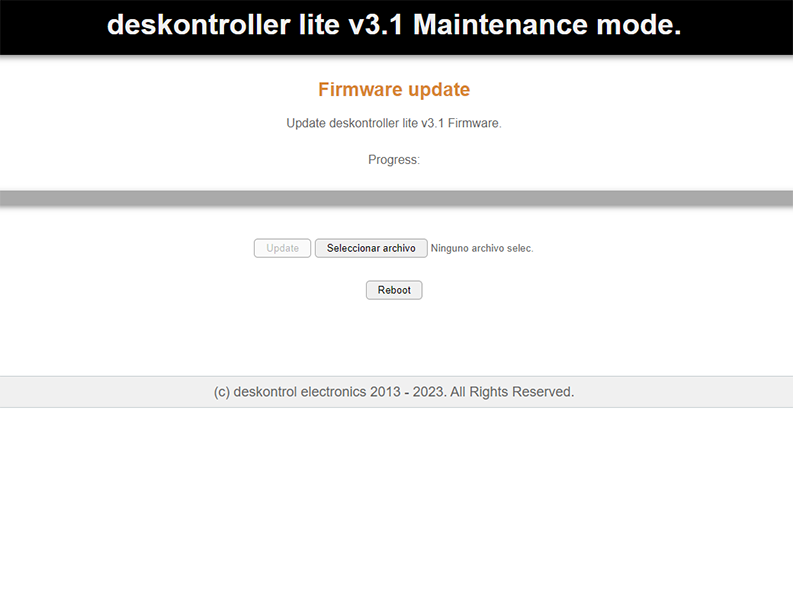

Web updates under a minute bring improvements, new ICs, and tweaks. Standalone test effects (solids, chases, gradients) verify zones without a server; Discover finds Art-Net nodes; Status separates network/patch/LED issues. Built for 24/7: thermal stability and continuous show.
Supports 100+ ICs: WS, SK, APA, TM, UCS, LPD, HD/INK families. Data logic at 5 V; power LEDs at 5/12/24 V as required. Mix RGB/RGBW, nodes, and matrices while keeping color consistent via per-output gamma and color order.
(Over 100 types of addressable digital LEDs; listed below by family or technical reference):
• Series APA – APA102(C) (DotStar), APA104, APA106 (5mm/F5 y 8mm/F8), APA107, APA109
• Custom – Custom 8-bit color protocols (normal and reverse polarity)
• Series D – D705, D707, D708
• Series CS/GE/GS – CS8812; GE8812, GE8822; GS8206, GS8208
• Series HD/INK – HD107S; INK1002(B), INK1003
• Series LC/LD – LC8805B, LC8808B, LC8812(B), LC8822, LC8823; LD1510 (versiones de 8 y 12 bits)
• Series LPD – LPD1101, LPD1882, LPD1886, LPD6803, LPD6813, LPD8803, LPD8806
• Series NS – NS107(S/SA), NS108(E)
• Series P981x/P9883 – P9813, P9816, P9823 (5mm/F5 y 8mm/F8), P9883; PB3/4/5xxxxxx, (compatible protocols P); PD9823, PL9823
• Series SC/SK – SC6803; SK6805, SK6812 (incl. NeoPixel), SK6813, SK6818, SK6822; SK9816; SK9822(A), SK9826
• Series SM16xxx – SM16703, SM16704, SM16711, SM16716, SM16726
• Series TM – TM1803, TM1804, TM1809, TM1812, TM1814, TM1825, TM1826, TM1829, TM1903, TM1913, TM1914, TM1925, TM1926
• Series UCS – UCS1903, UCS1904; UCS2903, UCS2904, UCS2909, UCS2912; UCS3903; UCS512 (high and low speed); UCS5903; UCS6909, UCS6912; UCS7009; UCS8903; UCS9812
• Series WS – WS2801, WS2803; WS2811, WS2812/NeoPixel, WS2812B, WS2812C, WS2812D (5mm); WS2812S; WS2813 (A, B, C, D); WS2814; WS2815; WS2818; WS2821 (high and low speed); WS2822 (high and low speed); WS2851
Art-Net LED Pixel Controllers (RJ45 • 32 physical outputs)
32 universes · 16,384 DMX channels total
64 universes · 32,768 DMX channels total
96 universes · 49,152 DMX channels total
128 universes · 65,536 DMX channels total
160 universes · 81,920 DMX channels total
192 universes · 98,304 DMX channels total

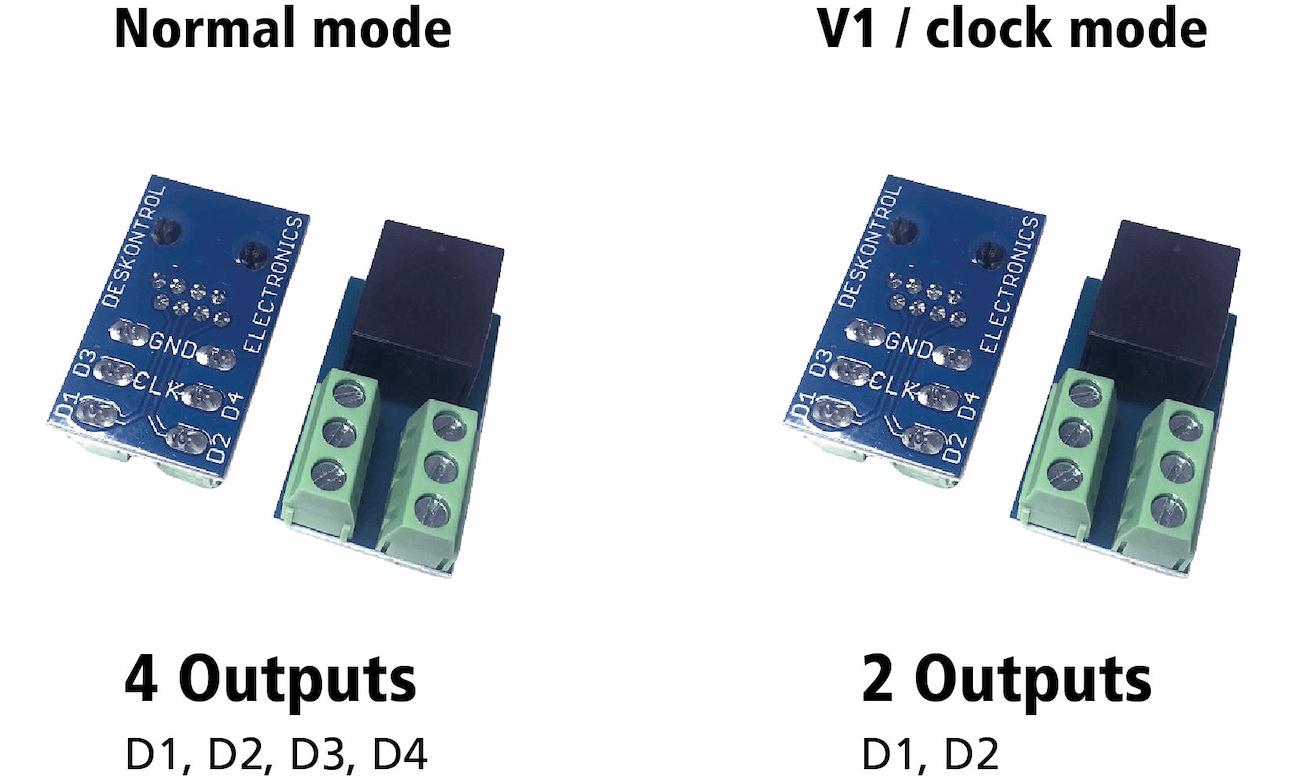

All lite v3 models have 32 physical data outputs (RJ45). Enabling V1 mode (Setup → Outputs → “Enable V1 mode”) sets 16 outputs active, doubling universes per output while keeping the same total universes.
** Indicative maximum FPS with data-only strips (~800 kb/s). Actual caps depend on mapping per output, host PC and control software.
*** Universe math at 8-bit: ≈170 RGB or ≈128 RGBW pixels per universe.
Common features
• Integrated SPI controller: Ethernet to addressable LEDs (no extra hardware).
• Web-based configuration & firmware updates (no drivers).
• Art-Net/DMX compatibility with leading software
(Madrix, Resolume, MadMapper, TouchDesigner, VVVV, LightJams, etc.).
Need technical help?
• Getting Started (deskontroller.com)
• Wiring & Power (deskontroller.com)
• Pixel Protocols & IC index (deskontroller.com)
• Troubleshooting & FAQ (deskontroller.com)
Read full documentation on deskontroller.com · See price & availability on this page or visit deskontroller.com for LITE V3 details.
Applications + Warranty & support
Great for clubs/theaters, mid-size shows, immersive retail, and multi-layer stages needing more zones without sacrificing smoothness. European-made, CE/FCC, 5-year warranty; expert support, fast shipping, 30-day returns. More capacity, same agility.
